Vision-Guided CV Joint Picking

Mech-Mind AI+3D Industrial Robot Solution

The 3D vision guides the robot to pick the CV joints from the bin and place them on the conveyor.

Advantages:

1. Mech-Eye PRO industrial 3D camera is of high precision and can generate high-quality point cloud data for CV joints with reflective surfaces and complex structures;

2. The solution easily deals with metal parts of different specifications: 60~120mm bottom diameter, 16~45mm handle diameter, and 80 ~ 500 mm height;

3. Intelligent collision detection combined with grasping planning algorithm enables the best picking angle and position to improve stability and safety, solving typical problems such as colliding with other workpieces and bins, dropping parts, etc.

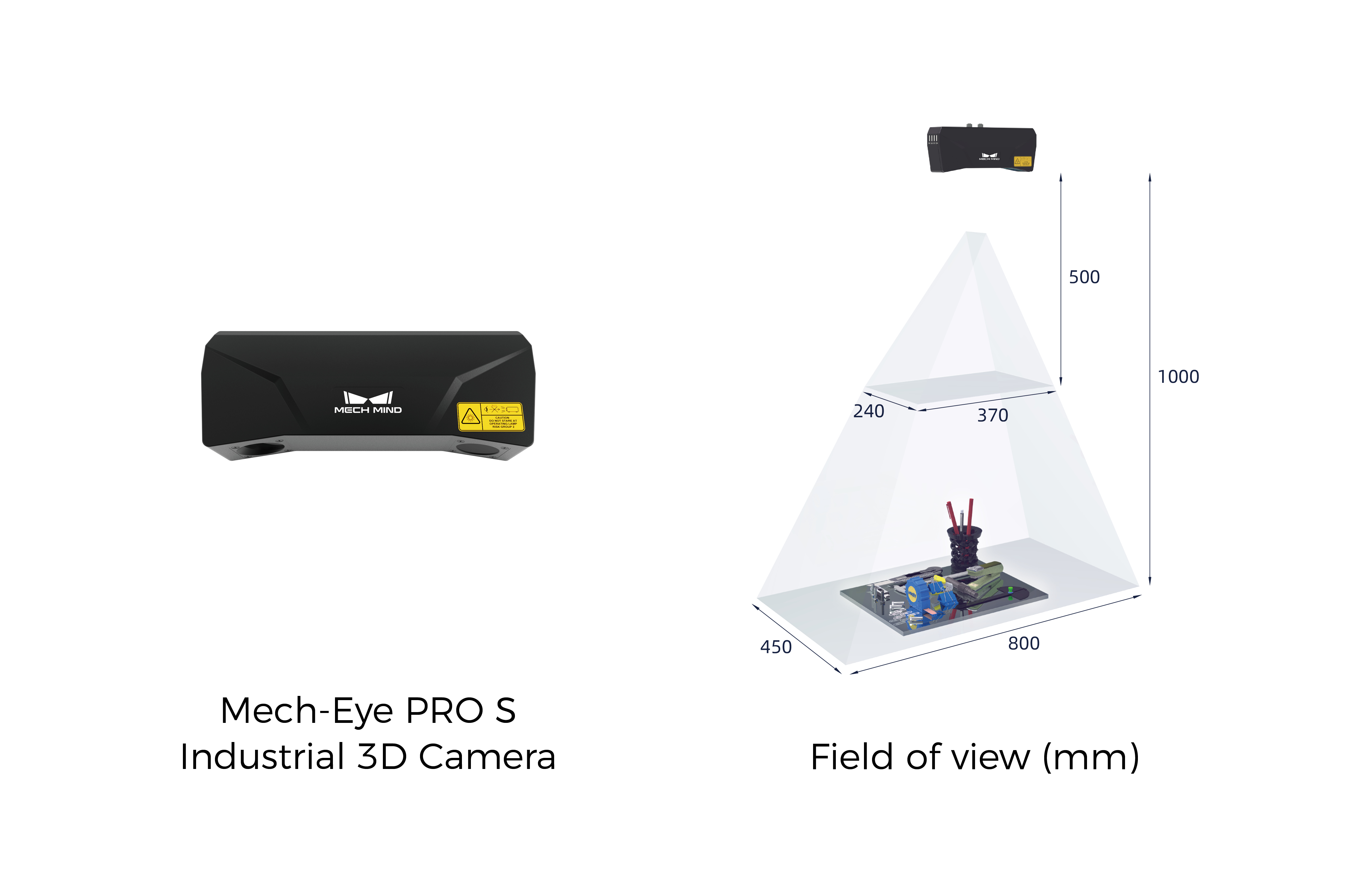

Mech-Eye Industrial 3D Camera
